RLB Pro8 Switch Panel
RLB Pro8 Switch Panel

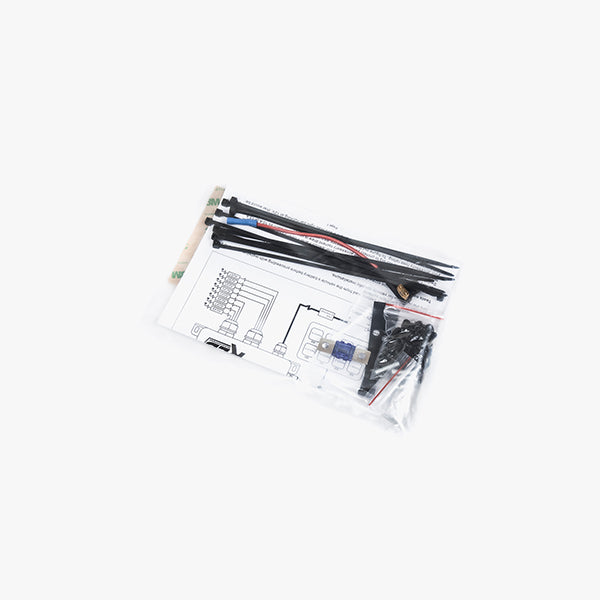

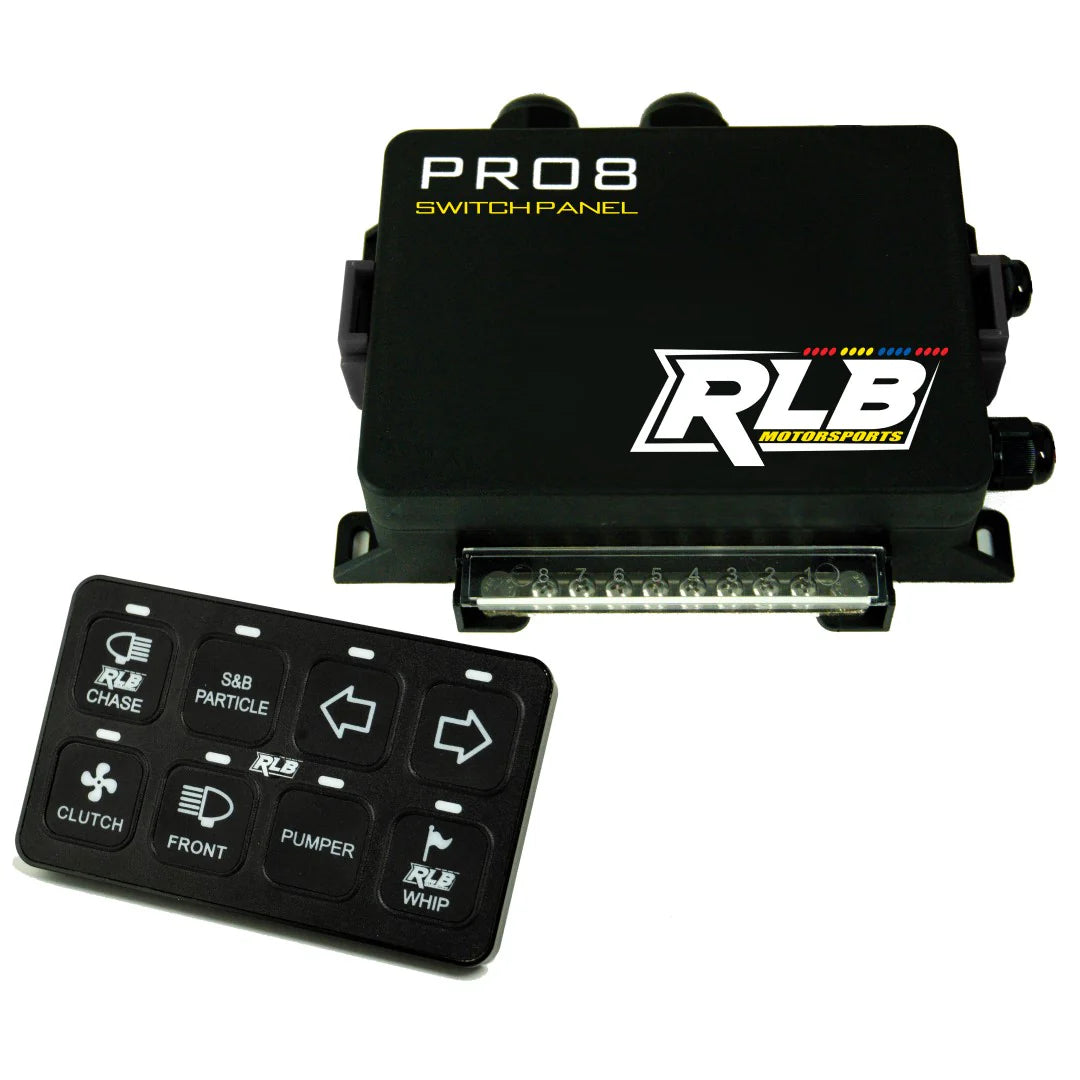

The PRO8 is an 8 button electronic programmable switch panel. Allows for easy installation of any 12V accessories to any off-road vehicle, UTV, Jeep, car, truck, RV, or boat. Waterproof, 100% serviceable, and with four easy mounting options. All-in-one Plug N Play kit.

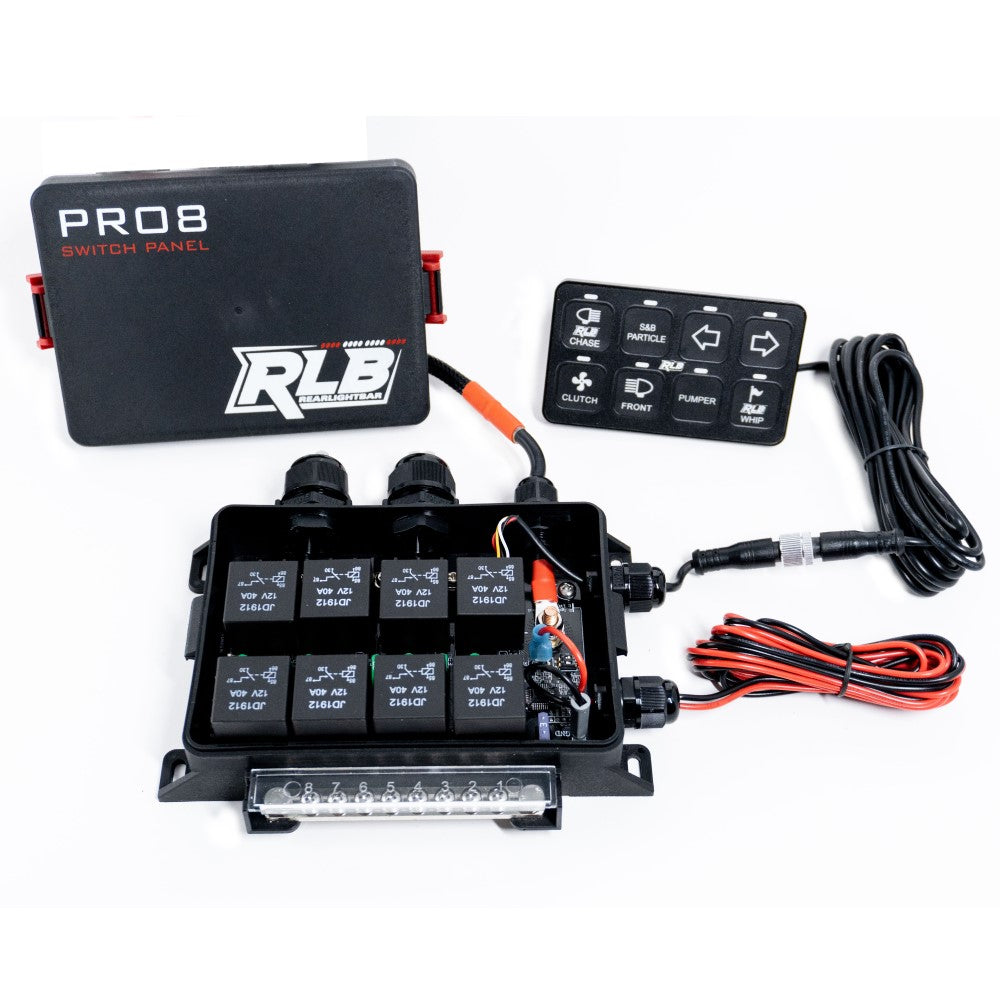

All Systems Include:

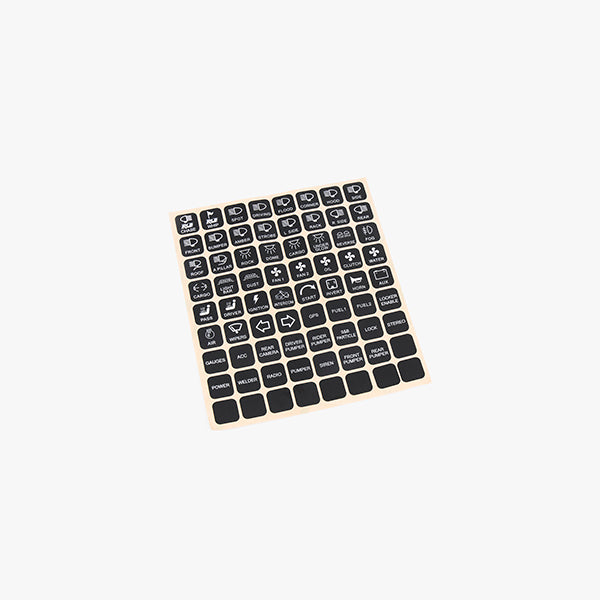

- Sticker Legend
- Eight User-selectable Programmable Switches
- Eight 30a Circuits
- Waterproof Power Module
- 100% Serviceable, the Universal Relays and Fuses Are Replaceable; Not Solid State
- 4 Backlight Color Options; White, Blue, Green, and Red
- Two Installation Options: Direct to Battery or Ignition Activated
- 4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
- Low Voltage Cut-off Protection
- Overvoltage Protection

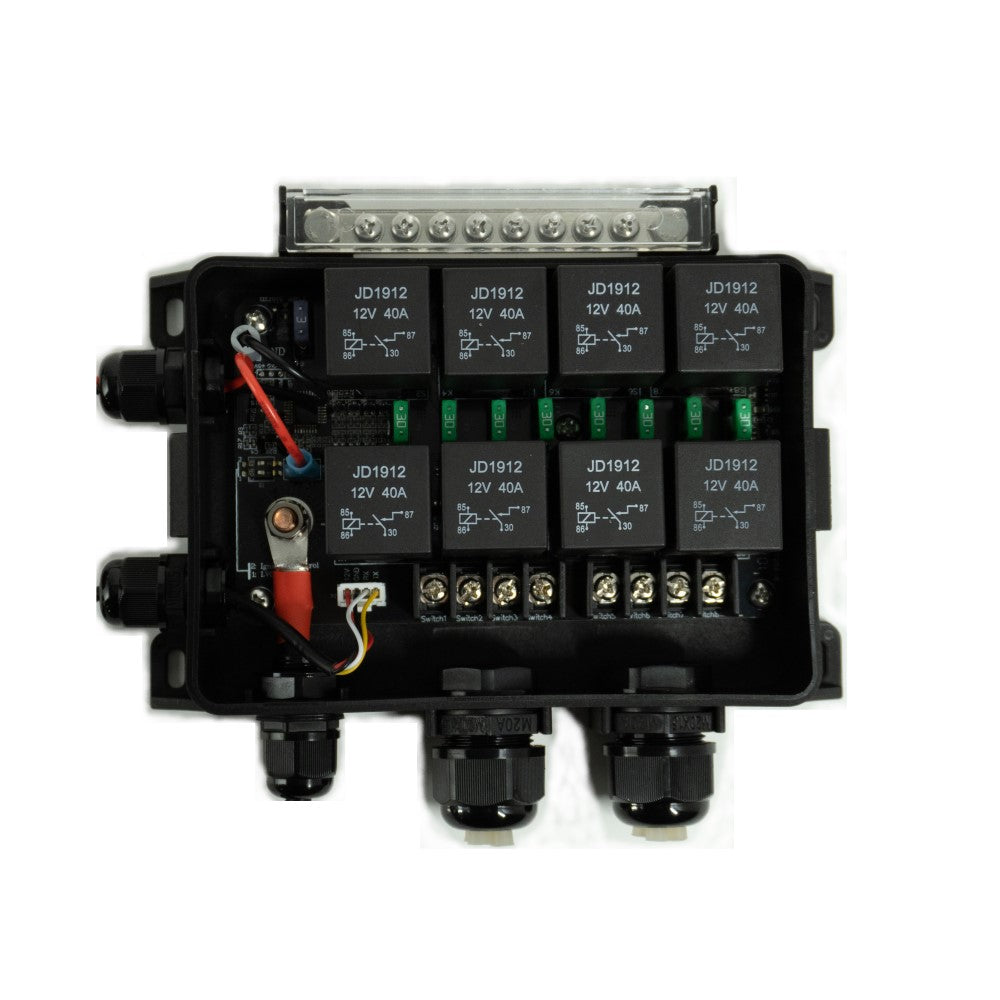

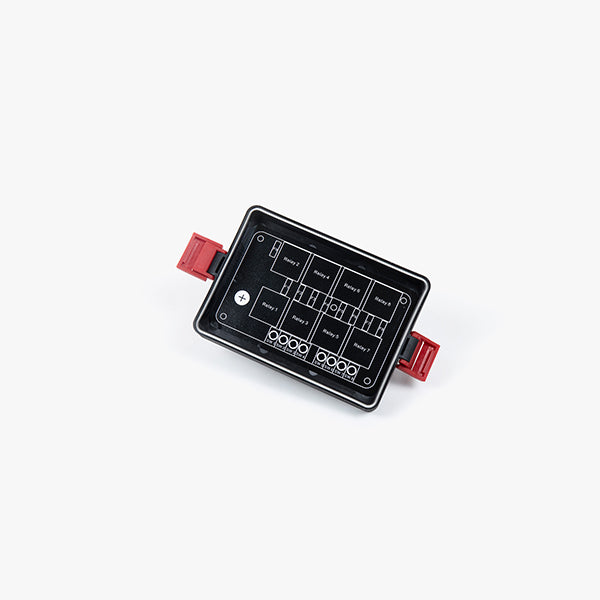

- Completely Serviceable Fuse/relay Power Module
Switches Can Be Programmed for:
- On/off or Momentary
- Blinker
- Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
- Memory Function
- Master Memory on/off Function
- Waterproof Polycarbonate Overlay Faceplate
SPECS:

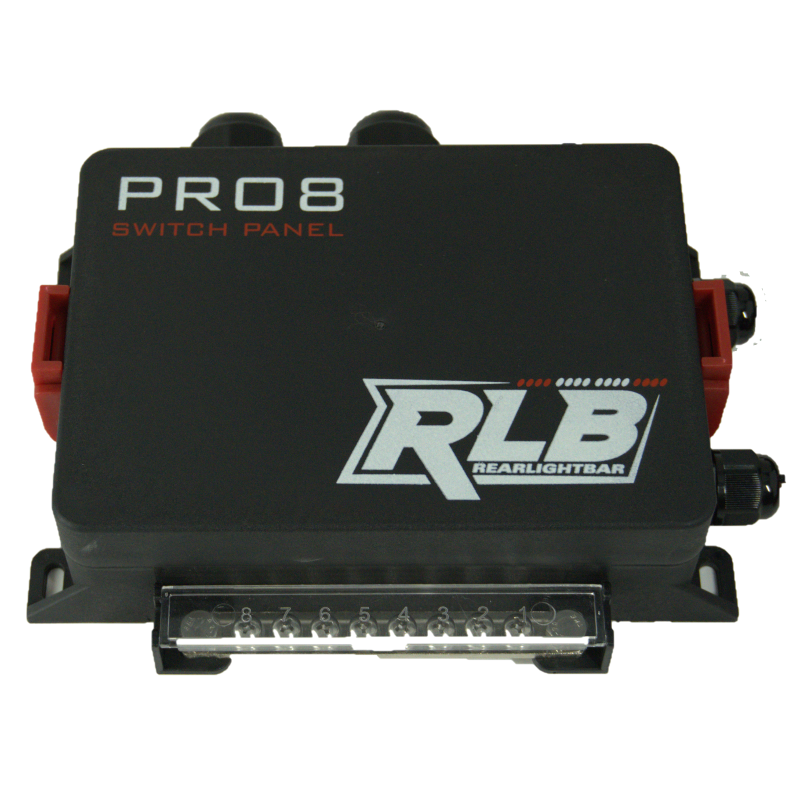

Power Module:
- Size: Length 8.27″, Width 6.3″, Height 2.24″
- Temp. Rating: Automotive -40c – 125c
- Waterproof and Dust Rating: Ip66
- Amp Rating: 100a Max
- Each Switch Output: 30a Max
- Low Voltage Cutoff
- Ignition Control

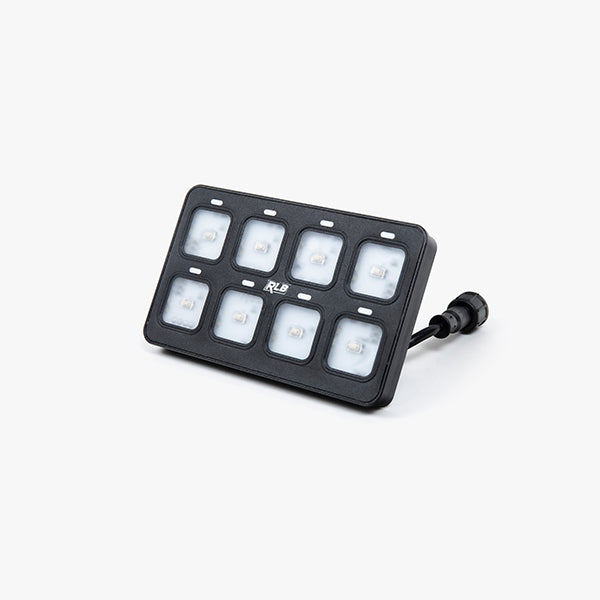

Switch Panel:
- Size: Length 4.57″, Width 2.72″, Height 0.47″
- Housing: Anodized Aluminum
- Switch Membrane and Sticker Legend: Polycarbonate
- Temp. Rating: -30c – 85c
- Waterproof and Dust Rating: 1p66
- Backlight Colors: White, Blue, Green, Red
- Switch Functions: on/off, Flash, Strobe, Momentary, Blinker
- Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
SKU:PRO8
